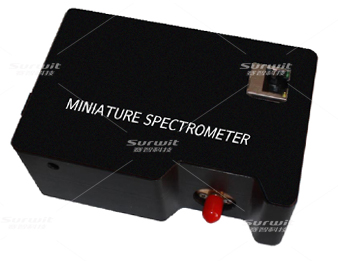

S5500-UV-VIS-Spectrometer

Share:

Product Introduction

六玄网S5500-UV-VIS is a miniature spectrometer configured with crossed Czerny-Turner optical bench. Free Software and Software Development Kit(SDK) is available for spectrum analysis in various applications.


Features


Wavelength Range: 190nm ~ 850nm

六玄网UV enhanced

Software Development Kit(SDK) for Windows / Embedded system / Linux

RS232 Communication Protocol Support for Embedded System

六玄网High Spectral Resolution (FWHM) from 0.2 nm

六玄网High Sensitivity


Applications


六玄网Measurement of transmittance and reflectance

六玄网Absorbance/concentration measurement/chemical analysis

六玄网dsDNA/Protein/Biological Research

UV visible light source measurement

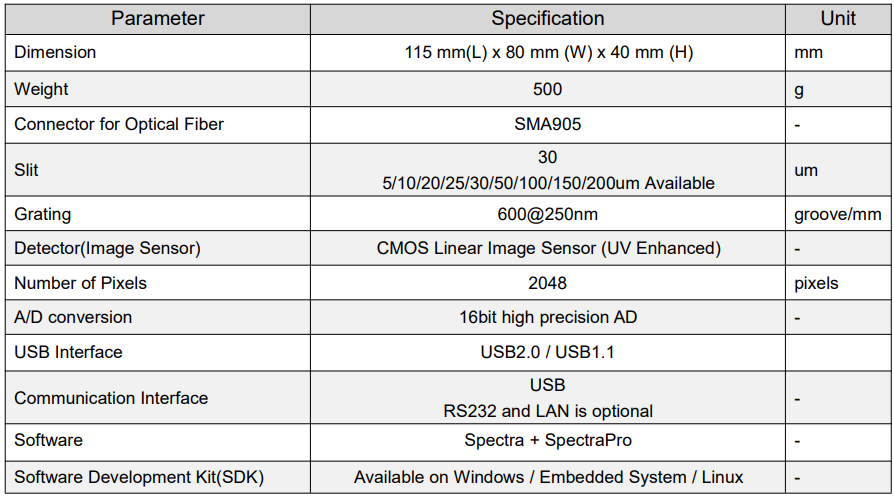

Structure:



六玄网Absolute maximum ratings:

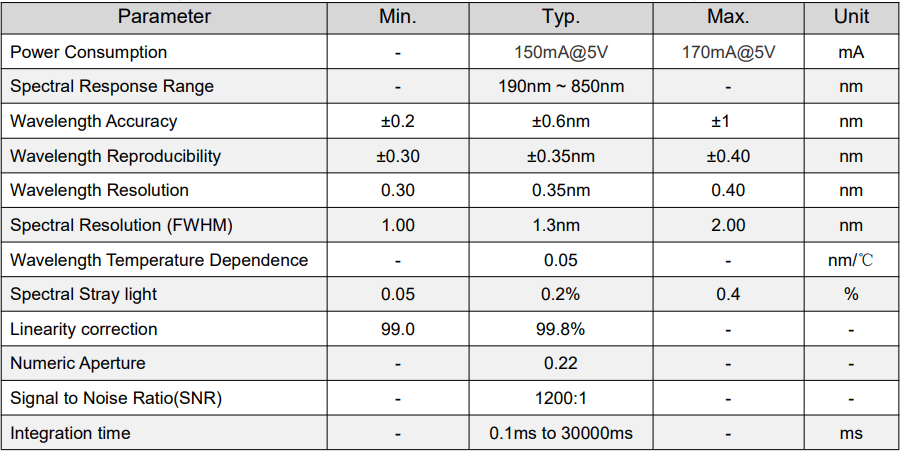

六玄网Electrical and Optical characteristics(Ta=25℃,unless otherwise noted)

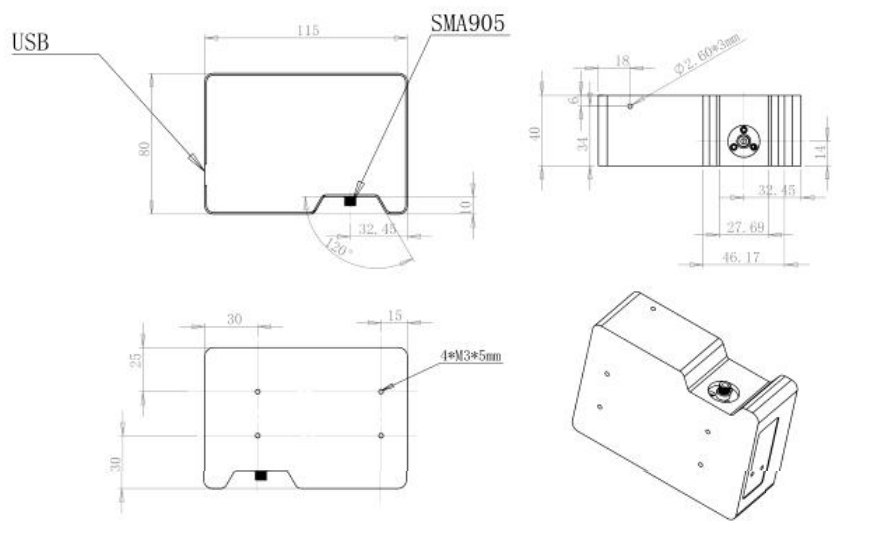

六玄网Dimensional outline(unit:mm,tolerance unless otherwise noted:±0.5)
